Poseidon

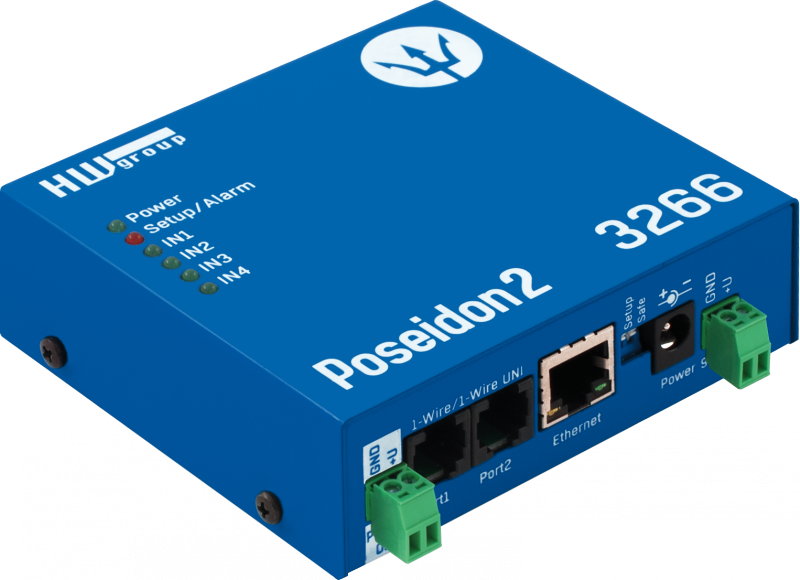

Poseidon2 3266

Poseidon2 3266 supports up to 8 sensors connected over 1-Wire UNI / 1-Wire and up to 4 detectors connected to digital inputs.

A built-in web server is used for configuring. The device can be monitored remotely over the internet using the free SensDesk portal in combination with the SensDesk Mobile application for iOS and Android. It works with HWg-PDMS and HWg-Trigger.

Poseidon2 devices are designed to monitor and control sensors and digital I/O over the network using secure M2M protocols (HTTPs, IPv6, SNMPv3). With support for over 50 SNMP and SCADA applications, Poseidon2 devices can be integrated in a wide range of monitoring and control systems. MQTT protocol enables integration in IoT solutions.

Features:

8x 1-Wire UNI/1-Wire Input; 4x Digital Input; Data Logger for more than 250.000 records; Digital Inputs feature 32-bit S0 pulse counters that retain their value even if the power fails
5x SNMP Trap; 5x E-mail; 5x “SMS+Ring” (via external GSM gateway or modem)
MQTT compatibility allows connecting to IoT Hub, MS Azure, Bluemix Internet of Things and other cloud services.
Connected via LAN. Configuration via built-in web server.
A sensor value out of a set safe range as well as a DI state change sends an alert by e-mail, SMS, SNMP Trap, or activates a remote relay at another Poseidon2 of Damocles2 unit.
For Ring or SMS alarm use the HWg-Trigger software (external GSM modem required), or a HWg-SMS-GW3 gateway in the same LAN.
With the HWg-PDMS software, S0 pulses can be converted to cost per time period and exported to MS Excel.
Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in theHWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).

Applications and usage:

Remote monitoring in IT environments
Connects to any SNMP system.
Temperature monitoring at several places
Cooler and freezer monitoring
UPS monitoring
Surveillance systems
Industrial applications

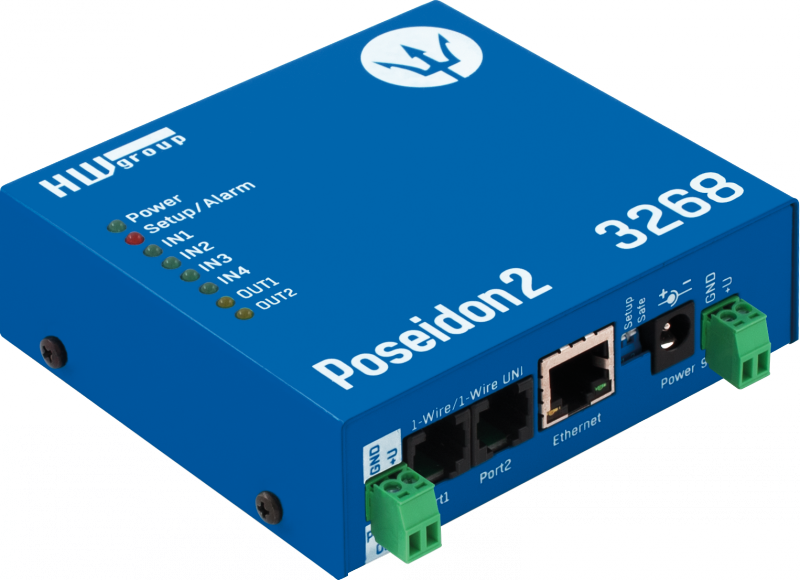

Poseidon2 3268

Poseidon2 3268 supports up to 8 sensors connected over 1-Wire UNI / 1-Wire and up to 4 detectors connected to digital inputs. Poseidon2 3268 can control 2 digital NO/NC relay outputs, as well as up to 8 virtual digital outputs (VDO) at remote Poseidon2 or Damocles2 units (M2M).

Features:

8x 1-Wire UNI/1-Wire Input; 4x Digital Input; Data Logger for more than 250.000 records; Digital Inputs feature 32-bit S0 pulse counters that retain their value even if the power fails
2x Relay Output NO/NC; 8x Virtual Digital Output
5x SNMP Trap; 5x E-mail; 5x “SMS+Ring” (via external GSM gateway or modem)
MQTT compatibility allows connecting to IoT Hub, MS Azure, Bluemix Internet of Things and other cloud services.
Connected via LAN. Configuration via built-in web server.
A sensor value out of a set safe range as well as a DI state change sends an alert by e-mail, SMS, SNMP Trap, or activates a remote relay at another Poseidon2 of Damocles2 unit.
For Ring or SMS alarm use the HWg-Trigger software (external GSM modem required), or a HWg-SMS-GW3 gateway in the same LAN.
Virtual Digital Outputs (VDO) can be mapped to physical digital outputs (relays) of other Poseidon2 or Damocles2 units on the same LAN.
With the HWg-PDMS software, S0 pulses can be converted to cost per time period and exported to MS Excel.
Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in the HWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).

Applications and usage:

Temperature alarms and a thermostat in IT
Switching HVAC / ventilation in a cabinet
Remote I/O control and monitoring over the Ethernet
Surveilance systems
Industrial applications
Cooler and freezer monitoring + alarm indication
Temperature and other measurements in a cloud
Online web portal + mobile app
Smart buildings

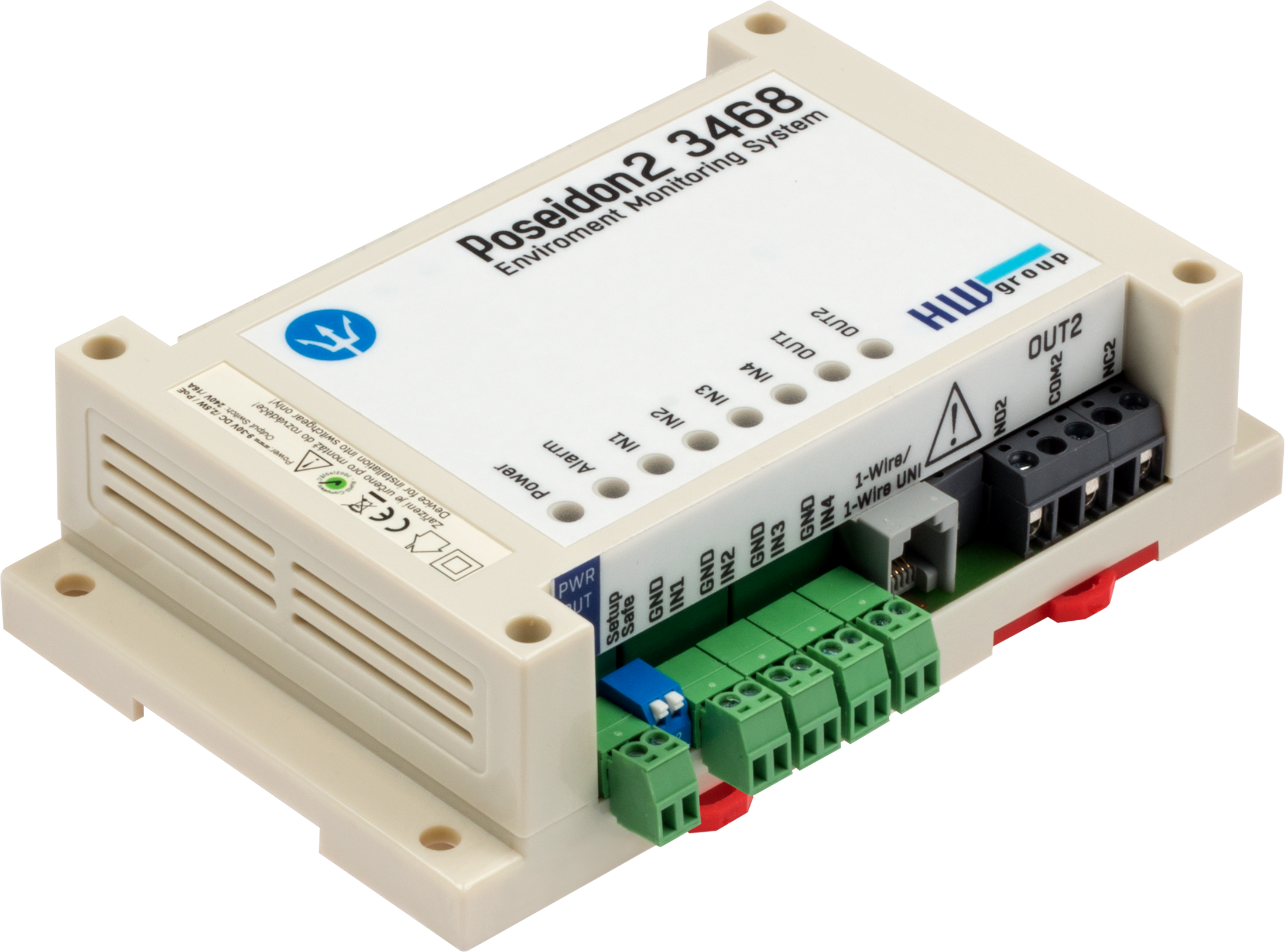

Poseidon2 3468

Poseidon2 3468 supports up to 8 sensors connected over 1-Wire UNI / 1-Wire and up to 4 detectors connected to digital inputs. Poseidon2 3468 can control 2 digital 230 V / 10 A relay outputs, as well as up to 8 virtual digital outputs (VDO) at remote Poseidon2 or Damocles2 units (M2M).

In addition to the standard 9–30 V power input, Poseidon2 3468can be powered from -48 V to enable easy use in Telco solutions.

Features:

8x 1-Wire UNI/1-Wire Input; 4x Digital Input; Data Logger for more than 250.000 records; Digital Inputs feature 32-bit S0 pulse counters that retain their value even if the power fails
2x Relay Output 230V/10A; 8x Virtual Digital Output
5x SNMP Trap; 5x E-mail; 5x “SMS+Ring” (via external GSM gateway or modem)
MQTT compatibility allows connecting to IoT Hub, MS Azure, Bluemix Internet of Things and other cloud services.
Connected via LAN. Configuration via built-in web server.
A sensor value out of a set safe range as well as a DI state change sends an alert by e-mail, SMS, SNMP Trap, or activates a remote relay at another Poseidon2 of Damocles2 unit.
For Ring or SMS alarm use the HWg-Trigger software (external GSM modem required), or a HWg-SMS-GW3 gateway in the same LAN.
Virtual Digital Outputs (VDO) can be mapped to physical digital outputs (relays) of other Poseidon2 or Damocles2 units on the same LAN.
With the HWg-PDMS software, S0 pulses can be converted to cost per time period and exported to MS Excel.
Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in theHWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).

Applications and usage:

Remote thermostat / cabinet monitoring
Monitor doors, power supply status, temperature / humidity, dry contacts.
Industrial applications
Remote monitoring of dry contacts, 4-20mA probes or Pt100 / Pt1000 temperature probes. Values are logged to the internal memory.
Monitoring at –48V telco nodes
Monitoring of power supply, back-up generators or UPS Fuel level, diesel generator status, remote start over IP, monitoring of temperature and service interface (Dry conta
cts).
Pharmaceuticals and food storage– temperature logging
Monitoring of storage conditions – warehouses, cooling plants, freezers, refrigerators. Application software can create HACCP reports.
Smart buildings

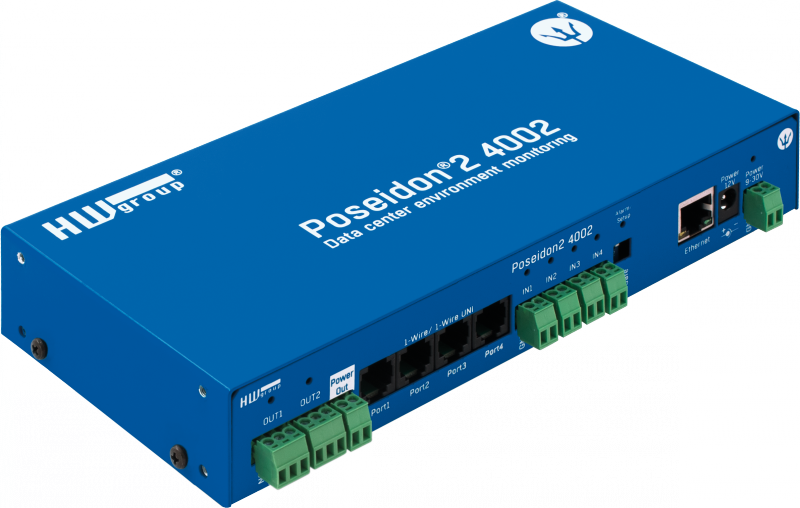

Poseidon2 4002

Poseidon2 4002 can connect up to 40 sensors (16 via 1-Wire UNI/1-Wire + 24 via RS-485), provides 12 digital dry contact inputs (DI), 8 virtual digital outputs and allows control of 4 relay outputs (NO/NC).

Poseidon2 4002 has a 5-year warranty.

Features:

16x 1-Wire UNI/1-Wire Input; 24x RS-485 Input; 12x Digital Input; Data Logger for more than 250.000 records; Digital Inputs feature 32-bit S0 pulse counters that retain their value even if the power fails
4x Relay Output NO/NC; 8x Virtual Digital Output
5x SNMP Trap; 5x E-mail; 5x “SMS+Ring” (via external GSM gateway or modem)
MQTT compatibility allows connecting to IoT Hub, MS Azure, Bluemix Internet of Things and other cloud services.
Connected via LAN. Configuration via built-in web server.
A sensor value out of a set safe range as well as a DI state change sends an alert by e-mail, SMS, SNMP Trap, or activates a remote relay at another Poseidon2 of Damocles2 unit.
For Ring or SMS alarm use the HWg-Trigger software (external GSM modem required), or a HWg-SMS-GW3 gateway in the same LAN.
Virtual Digital Outputs (VDO) can be mapped to physical digital outputs (relays) of other Poseidon2 or Damocles2 units on the same LAN.
With the HWg-PDMS software, S0 pulses can be converted to cost per time period and exported to MS Excel.
Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in theHWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).

Applications and usage:

Server room environment monitoring
Remote environmental monitoring in a cabinet or in a datacenter
Air-conditioning monitoring
UPS / back-up generator monitoring
Industrial applications
Cooler and freezer monitoring + alarm indication
Temperature and other measurements in a cloud
Surveillance systems
Smart buildings
